Visually Display Information on Maps

Cosmin Potocean

• Software Dev/Engineer


• Northrop Grumman

• CDC - NCCDPHP - Chronic

LinkedIn
GitHub

What Will Cover

• Why Graphical Display
• Data Maps
• Process of a Custom Map
• Examples
• Other Visualizations

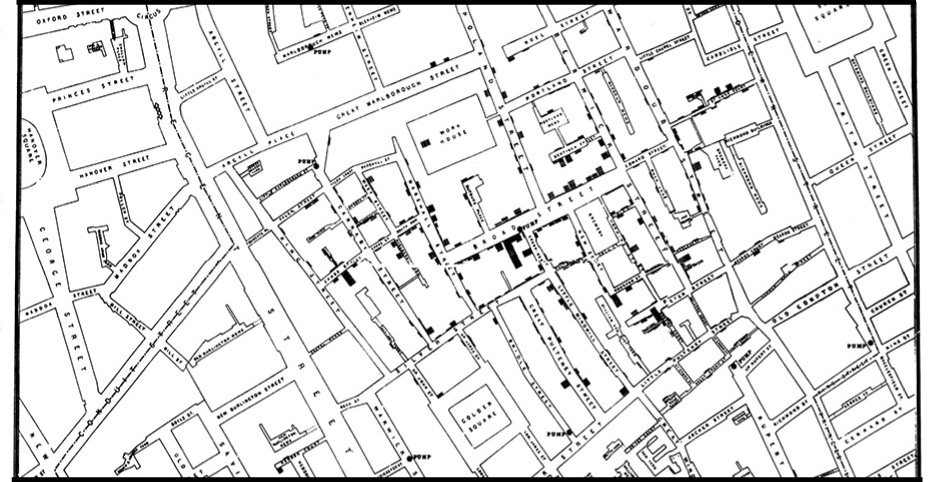

Scenario: Cholera Outbreak in London: 1854

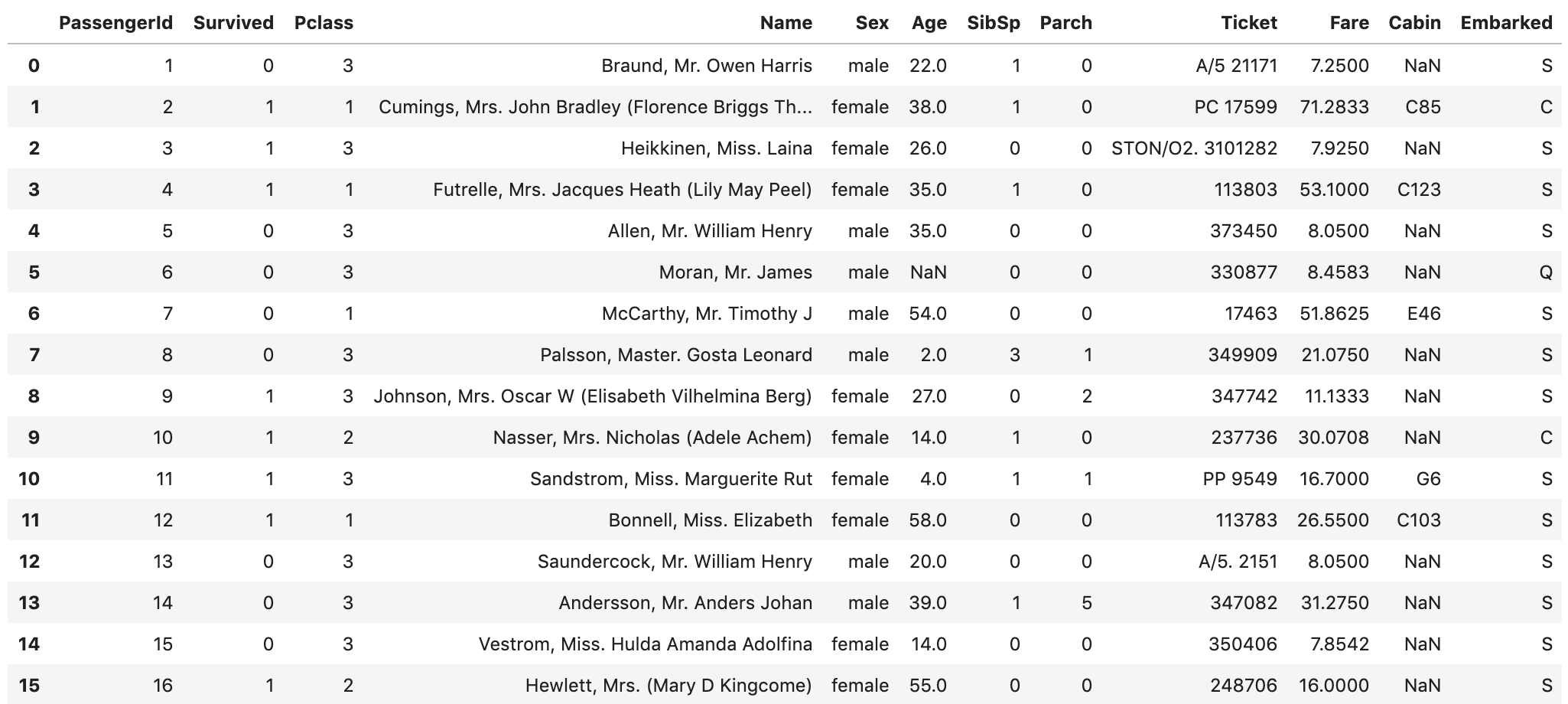

Why Graphical Display

• shows the data
• ..complex ideas communicated with clarity, precission, and efficiency
• ..viewer to think about substance rather than the methodology..

The Visual Display of Quantitative Infomation, by Edward R. Tufte

Data Maps

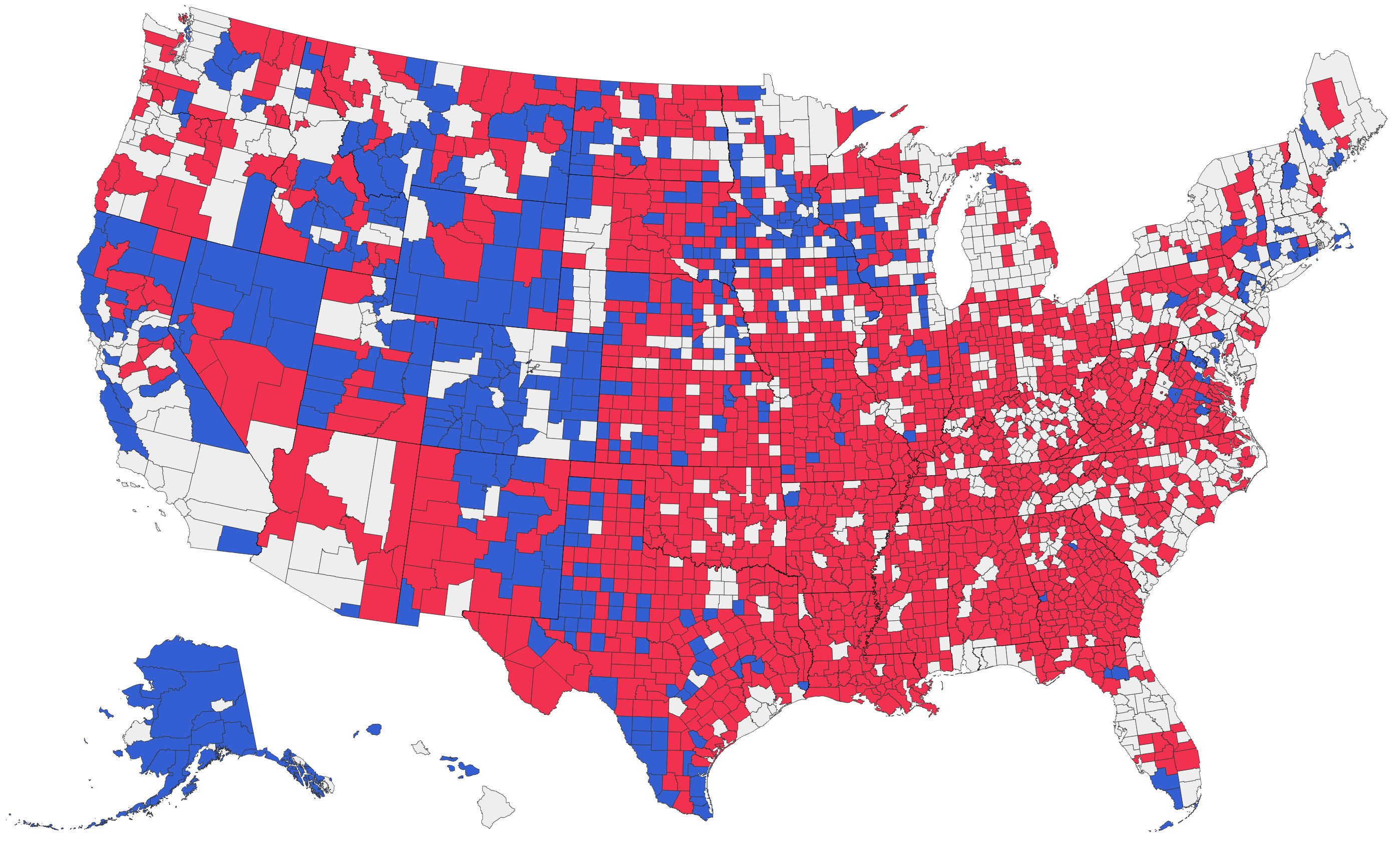

WCMS Data Maps

One picture can carry large volume of information

WCMS TP4 Features Gallery
(https://www.cdc.gov/wcms/4.0/cdc-wp/data-presentation/index.html)

Process of a Custom Map 1/3

• Shapefile
  geospatial vector data for GIS
  https://www.census.gov/programs-surveys/geography.html
  https://www.naturalearthdata.com/
  GDAL is a translator library https://gdal.org/


• GeoJSON
  encoding geographic data
  http://geojson.org/
  The GeoJSON Specification (RFC 7946 )


• TopoJSON
  simplified encoding geographic data
  eliminates redundancy, more efficient, smaller size https://github.com/topojson/topojson

Process of a Custom Map 2/3

• HTML, CSS, JavaScript
• D3.js Data-Driven Documents

							.....
							g.selectAll('path')
							.data(stateInView)
							.enter()
							.append('path')
							.....
							.style('fill', function (d) {
								// ############## MAP COLORS ############## ADI
								if (_mapType === 'mapChoice1' && d.properties._ADI && parseFloat(d.properties._ADI)) {
									let adi = d.properties._ADI
									const mapChoice1 = legend.mapChoice1;
									if (adi < 107.1) { return mapChoice1.low.color }
									if (adi >= 107.1 && adi < 111.9) { return mapChoice1.med.color }
									if (adi >= 111.9) { return mapChoice1.high.color }
								}
							......


Process of a Custom Map 3/3

• 1 - Data is loaded on the map topojson file
• 2 - Data is loaded from a local file
• 3 - Data is loaded from an API: https://nccd.cdc.gov/nccdproxyInternet/GTSSdata/publicAPI/GetWCMSLookups

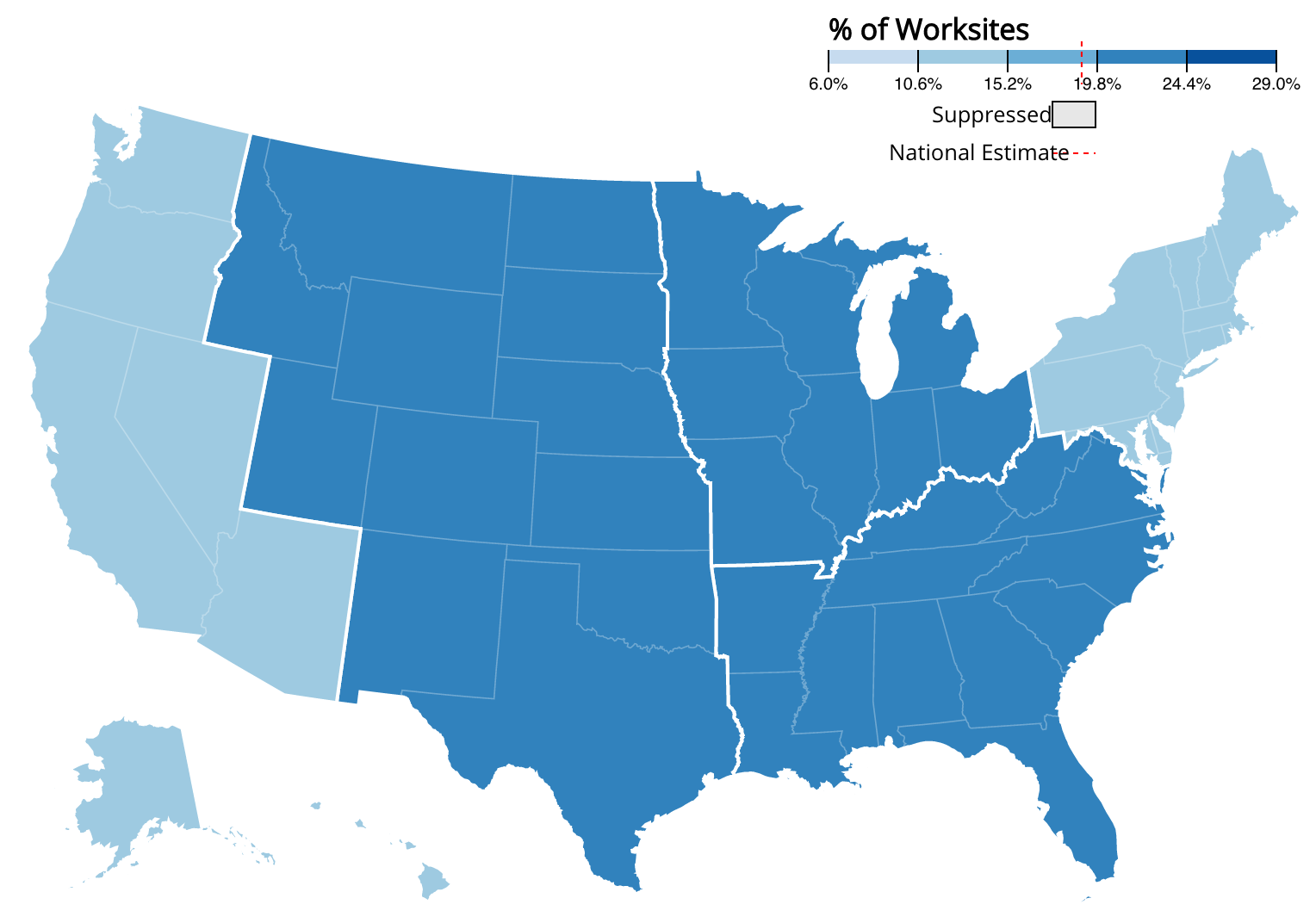

Example: National Diabetes Prevention Program

Example: Global Tobacco Surveillance System Data

Other Visualizations

D3.js Gallery

What Did We Cover

• Why Graphical Display  ✓
• Data Maps  ✓
• Process of a Custom Map  ✓
• Examples  ✓
• Other Visualizations  ✓

Thank you

?
